POS Hardware and Payment Gateway Options


POS Hardware and Payment Gateway Options


Gateway Options and Forms

This is just a sampling of available Gateway options,  other POS hardware and gateways will often work. However, these have been tested to work with our PMS products.

Merchant Processor Platforms Supported – download and send the proper form to your Merchant Bank Representative, as they can fill out the details you, as a property owner, may not know.

Hardware Options


EMV Card Swipe/Dip/Tap Support for Credit Card Transactions, uses wi-fi for for ease of mobility

D210 with EMV app, NFC/ApplePay, and wi-fi support

D210 with EMV app, NFC/ApplePay, and wi-fi support

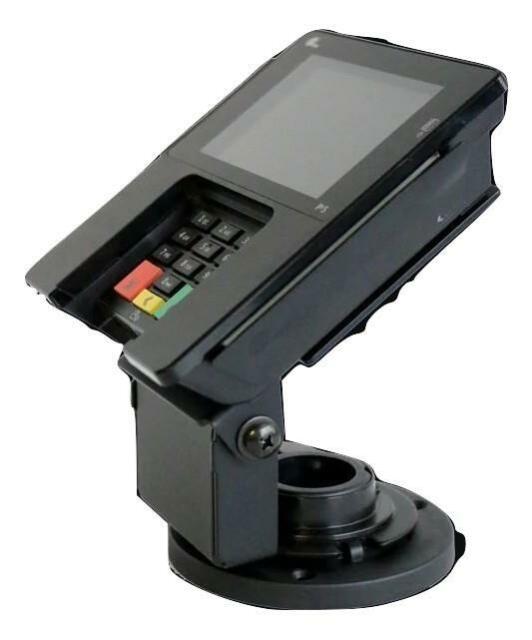

The PAX D210 ships with a certified EMV app for BookingCenter and our processor partners: TSYS, Vital, and VisaNet. This is the top-of-the-line device from PAX, as it supports everything: swipe/tap/dip and works via ethernet or wi-fi for mobility.  Retail cost: ~$TBD (awaiting EMV certification).



  • The PAX D210 is a wireless device, so it works equally well with Mac/PC, smartphones, and tablets that don’t usually come with ethernet ports.
  • If you wish to run your MyPMS business using iPad or Android tablets for card swiping/dipping/tapping, then this is the device for you.



EMV Card Swipe/Dip/Tap Support for Credit Card Transactions, requires ethernet cable for connectivity

S300 with EMV app support

S300 with EMV app support

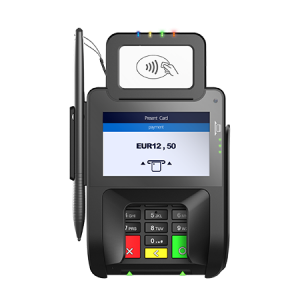

The PAX S300 (pictured, left) and MT30 have certified EMV apps for BookingCenter and our processor partners: TSYS, Vital, and VisaNet. The S300 support NFC/ApplePay natively.  The MT30 can support NFC/ApplePay with a connected R50 reader, if desired.  These devices require power + an ethernet connection to work.  Retail cost: ~$TBD (awaiting EMV certification).

  • All of these devices work via an Ethernet cable.
  • Only the Pax S300 supports NFC/ApplePay natively.

Card Swiper for Credit Card and/or Debit Card (non-EMV)

Credit Card Swiper

Credit Card Swiper

The IDT card swiper reads data as keyboard entry wherever the cursor is positioned. The card data (and magnetic swipe data) is then parsed by BookingCenter and placed into the correct fields in the Receipts screen of BookingCenter. Retail cost: ~$140 (free 2nd day FedEx to US).

  • Works on any USB or Serial interface, Mac or PC

Receipt Printers

Thermal Epson TMU220 Printer

Thermal Epson TMU220 Printer

We recommend Epson POS products. The printer is a workhorse and can’t be beat for price/performance. Comes with the serial interface, necessary cables, and 1 roll of paper and a print cartridge.

A case of printer paper will cost ~$120 and an extra box of 12 ribbons is ~$100. One roll of paper and ribbon is usually included with each purchase.

(this is what prints those nice yellow/white receipts for customers to sign)

Receipt Printers : Dot matrix

Receipt Printers : Thermal

Leads

  • Mac:8 Way Mini Din to Serial D 25
  • PC: 9 or 25 pin Serial D Connecto

Cash Drawers

Cash Drawer

Cash Drawer



If you use a standard receipt printer, it emits the pulse to the cash drawer to open at the conclusion of a transaction. Plastic cash drawers are decent but not recommended if the computer will be placed on top. For heavier needs, use a steel or aluminum cash drawer.

Cash Drawers

Leads

  • Mac and PC: Connects to receipt printer

Bar Code Printers

Bar Code Printer

Bar Code Printer



These machines will print bar codes directly from BookingCenter – so that each Inventory Item can be printed as a computer-readable bar code that can be scanned in to facilitate data entry for uses such as a gift shop or a restaurant. BookingCenter supports all EAN and Code 39 type coding schemes.

Barcode printers

  • Zebra 270 series
  • Zebra Orion

Leads

  • Mac:8 Way Mini Din to Serial D 25
  • PC: 9 or 25 pin Serial D Connector

Bar Code Readers

Bar Code Scanner

Bar Code Scanner



These machines will READ bar codes directly from a product or bar code BookingCenter – so that each Inventory Item can be added easily to a Guest Account. BookingCenter supports all EAN and Code 39 type coding schemes.

Barcode Scanners

  • Any USB Scanner
  • Any Serial Scanner with a Keyboard wedge
  • Any USB Scanner
  • Any Serial Scanner with a Keyboard wedge

Leads

  • Mac or PC: USB or RJ45 Keyboard Wedge
  • PC: RJ45 for Keyboard Wedge

USB Adapters (Mac OS 7, 8, or 9 only. Not for OS X)

  • mini iDock
  • KeySpan

Leads
